Product Model | A2 Pro | |
Product Color | Pearl White | |
Product Type | Single-chip LCD projector | |
Display screen | 2.69- inch and 7 -inch touchscreen displays (dual-screen simultaneous display) | |
Optical parameters | brightness | 220LM |
Standard resolution | RGB 1280*720 | |
Contrast | 2000:01:00 | |
Color gamut | NTSC 40% ( min 35% ) | |
lens | 720P | |
Illumination uniformity | >65% | |
Light source type | led | |
Light source power | 64W | |
Light source lifespan | >10,000 hours | |
Projection parameters | Projection ratio | 1.30 +/- 10% |
Projection size | 35-250 inches | |
Projection distance | 1.1-10.0M | |
Aspect Ratio | 16 : 9 , 4 : 3 | |
Focusing method | Electric focusing | |
Trapezoidal correction | Automatic keystone calibration | |
Side throw | Side throw | |
Projection mode | Formal front projection / Formal rear projection / Ceiling-mounted front projection / Formal rear projection | |
Other functions | Autofocus / Auto keystone correction / Auto obstacle avoidance / Auto screen entry / Smart tablet | |
System parameters | CPU | SSD2381 (Quad-core Arm Cortex-A55 ) |
GPU | Mali-G52 1-Core-2EE | |
DDR | 1GB | |
EMMC | 8GB | |
Android version | Android 12.0 | |
Wi-Fi | 2.4GHz (802.11a/b/g/n/ac/ax) / Frequency range (2.4-2.4836GHz) , 5GHz (IEEE802.11a/n/ac/ax) / Frequency range (5.15-5.85GHz) | |
Bluetooth | BT 5.0 / Frequency band 2400-24835 MHz / 79 channels | |
speaker | 4 Ohm/3W(Max)*2 | |
Image format | JPG, JPEG, GIF, BMP, PNG | |
audio format | MP3, WMA, MP2, MP3, OGG, AAC, M4A, MA4, FLAC, 3GP, WAV , | |
M3U, RM, WMV | ||
Video format | MP4, MOV, 3GP, AVI | |
FLV,ISO,M2TS,MKV,MPG,RMVB,TP,TRP,TS,WMV,VOB,DAT,ASF, | ||
Text format | TXT, PDF,WORD,EXCEL, POWERPOINTS , | |
Human-computer interaction | interface | Infrared receiver head *1 |
HDMI ( High Definition Port ) *1 | ||
USB port *1 | ||
3.5mm stereo headphone jack *1 | ||
AC power outlet ( figure- 8 ) *1 | ||
Function button *1 ( Power on / off ) | ||
button | Standby - red light, Power on - blue light | |

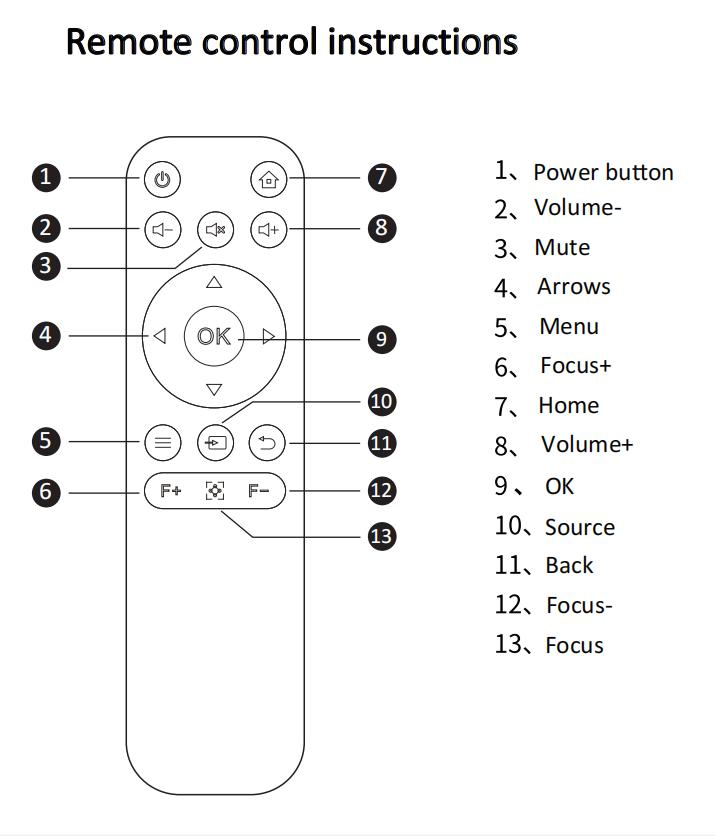

remote control | Infrared remote control | |
Electrical parameters | Total power | 64W (Max) |
Power input | AC100~240V 50/60Hz 1A | |
noise | < 30 dB (in a standard anechoic chamber, 1 meter distance in all four directions) | |
Working environment (temperature) | -5- 38 ℃ | |
Product Certification | CE/UKCA/FCC/ROSH | |
Size | Bare frame dimensions ( mm ) | 316mm*265mm*105mm |
Packaging box dimensions | 380mm*283mm*190mm | |
Outer box dimensions (mm) / 4 PCS | 586mm*397mm*400mm | |
Weight | Bare machine weight ( kg ) | Approximately 2.18 kg |
Packaging box weight ( kg ) | Approximately 3.34 kg | |
Outer box weight ( kg ) | Approximately 12.4 kg | |
Packing list | Accessories | Infrared remote control *1 , desiccant *1 , AC power cord *1 , instruction manual *1 |
|
|
|
